| Brand | |
|---|---|
| SPL |
125 dB |
| Amplifier Power |
2 X 750 W Bass (Class D) + 400 W Midrange (Class D) + 250 W Treble (Class D) |
| Frequency Response |
29 Hz – 21 kHz ("-6 dB") |
| Accuracy of Frequency Response |
± 2 dB (34 Hz – 20 kHz) |
| Driver Dimensions |
2 x ⌀ 305 mm Bass + ⌀ 125 mm Midrange + ⌀ 25 mm Treble (view in inches) |
| Dimensions |
H 700 x W 890 x D 383 mm, (view in inches) |
| Weight |
73 kg / 160.9 lb |
| Connections |
1 x XLR AES/EBU Input, 1 x XLR AES/EBU Output, 1 x XLR Analog Input, 2 x RJ45 Control |

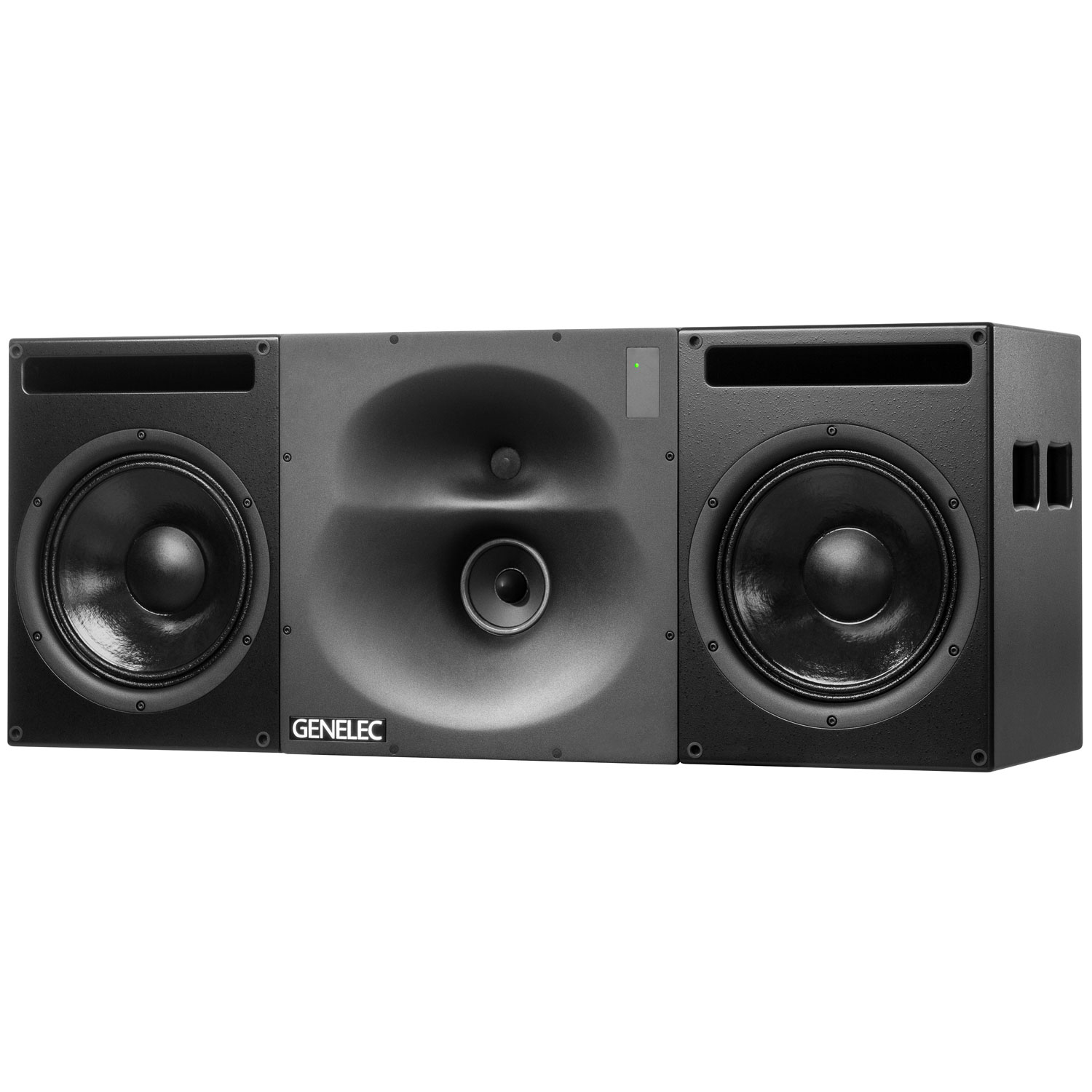

Genelec 1234AC SAM Studio Monitor
Designed for mixing stages and large control rooms, the directivity and SPL capability of the 1234AC is compatible with typical screen channels in commercial cinema, but with the higher performance required for professional monitoring. The 1234AC may be used in either horizontal or vertical orientation – thereby tailoring the LF directivity to both the room and the monitor placement – while precise on and off axis imaging allows you to make accurate mix decisions even when sitting outside the narrow sweet spot of most studio monitors.
