| Brand | |
|---|---|
| SPL |
121 dB |
| Amplifier Power |
500 W Bass (Class D) + 250 W Midrange (Class D) + 200 W Treble (Class AB) |
| Frequency Response |
30 Hz – 22 kHz ("-6 dB") |
| Accuracy of Frequency Response |
± 2.5 dB (35 Hz – 20 kHz) |
| Driver Dimensions |
⌀ 385 mm Bass + ⌀ 125 mm Midrange + ⌀ 25 mm Treble (view in inches) |
| Dimensions |
H 810 x W 480 x D 420 mm, (view in inches) |
| Weight |
57 kg / 125.7 lb |
| Connections |
1 x XLR AES/EBU Input, 1 x XLR AES/EBU Output, 1 x XLR Analog Input, 2 x RJ45 Control |

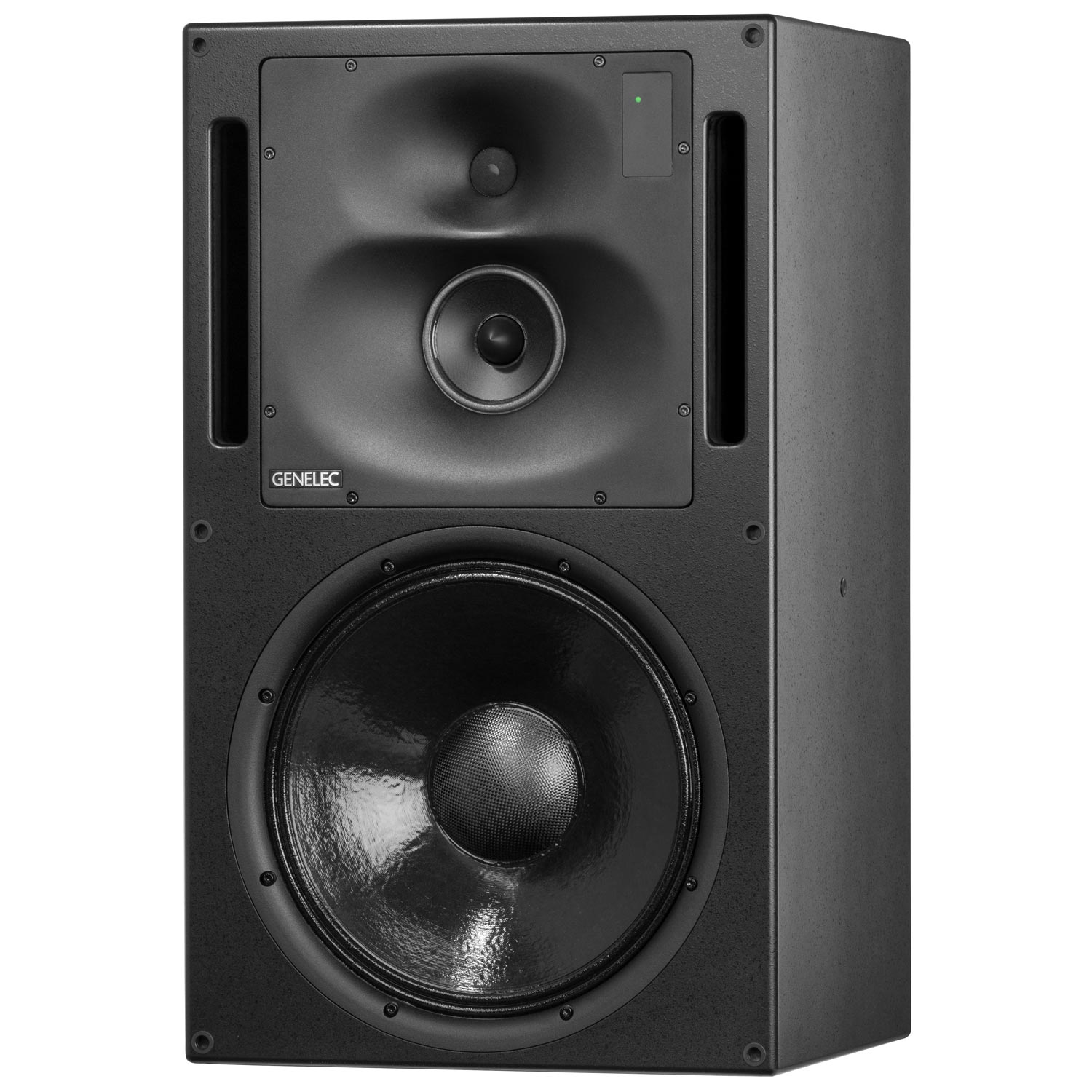

Genelec 1238A SAM Studio Monitor
The 1238A builds on the great legacy of the Genelec 1038, offering the same revered acoustic characteristics but now with onboard Smart Active Monitoring technology. And thanks to the RAM-L integrated amplifier module – which can be rack-mounted away from the enclosure – the 1238A can create a flush-mounting main monitoring system that combines unrivalled neutrality with a staggering 121 dB of peak SPL.
